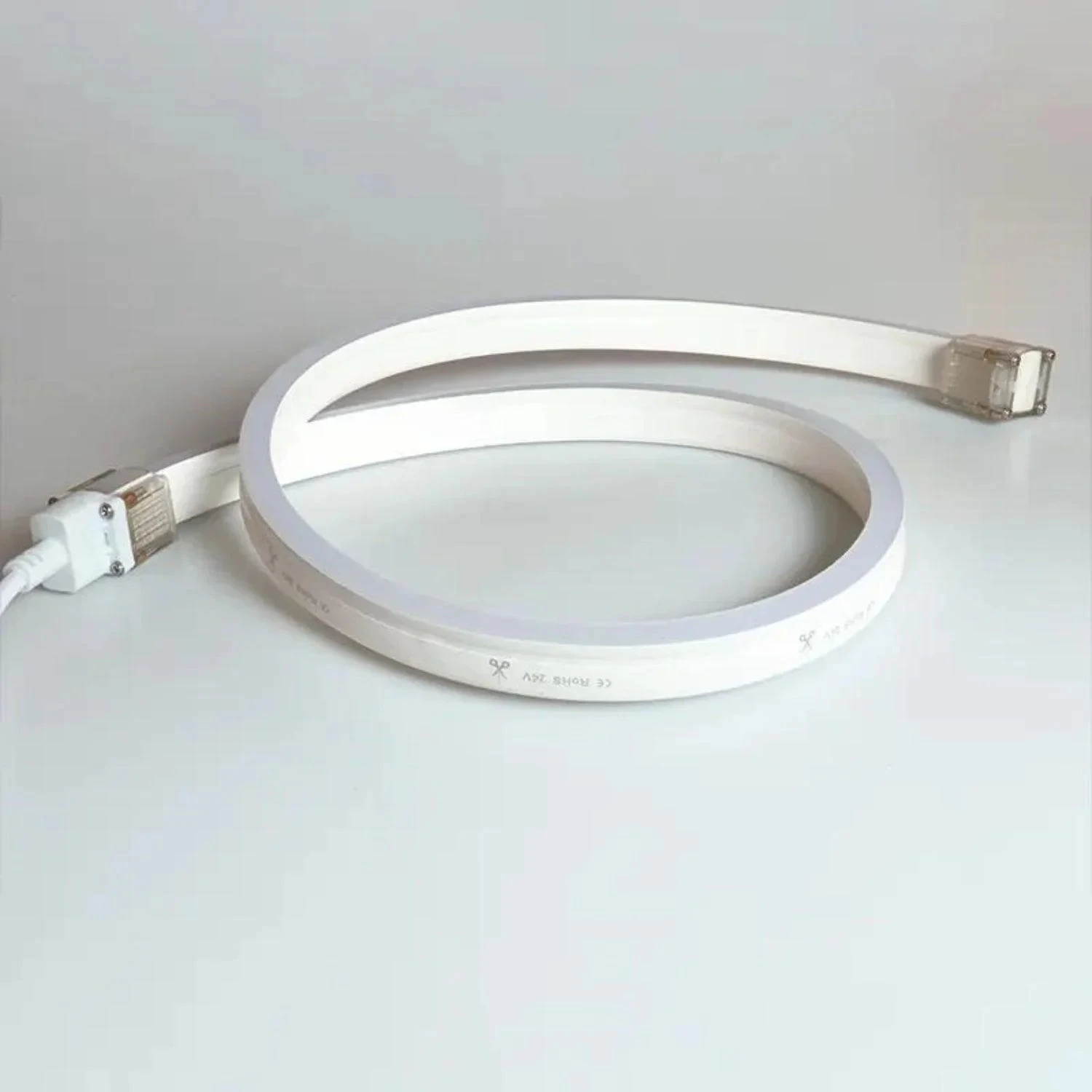

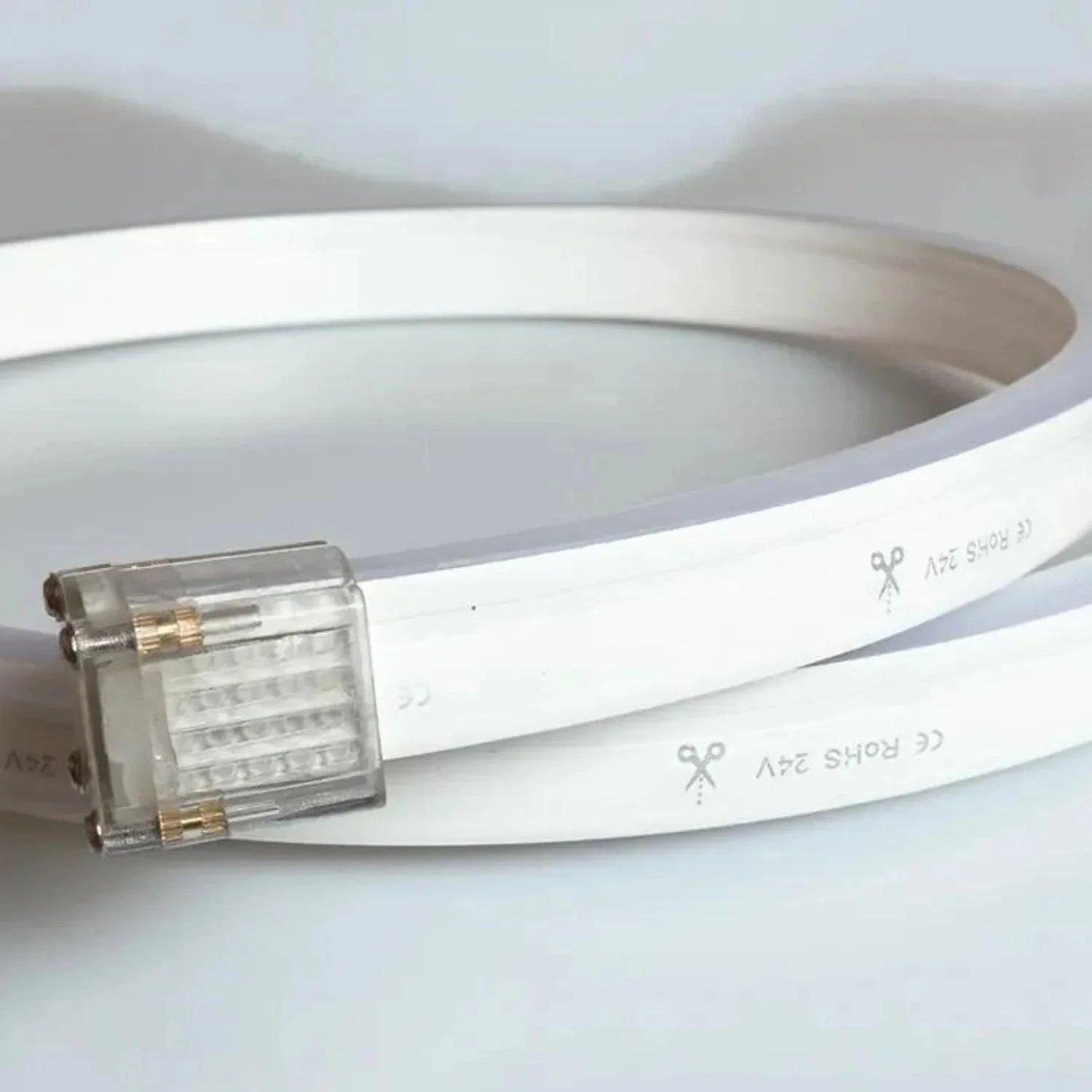

Addressable Digital Pixel RGB Neon Flex 24V 10x20mm IP68 Waterproof WS2811

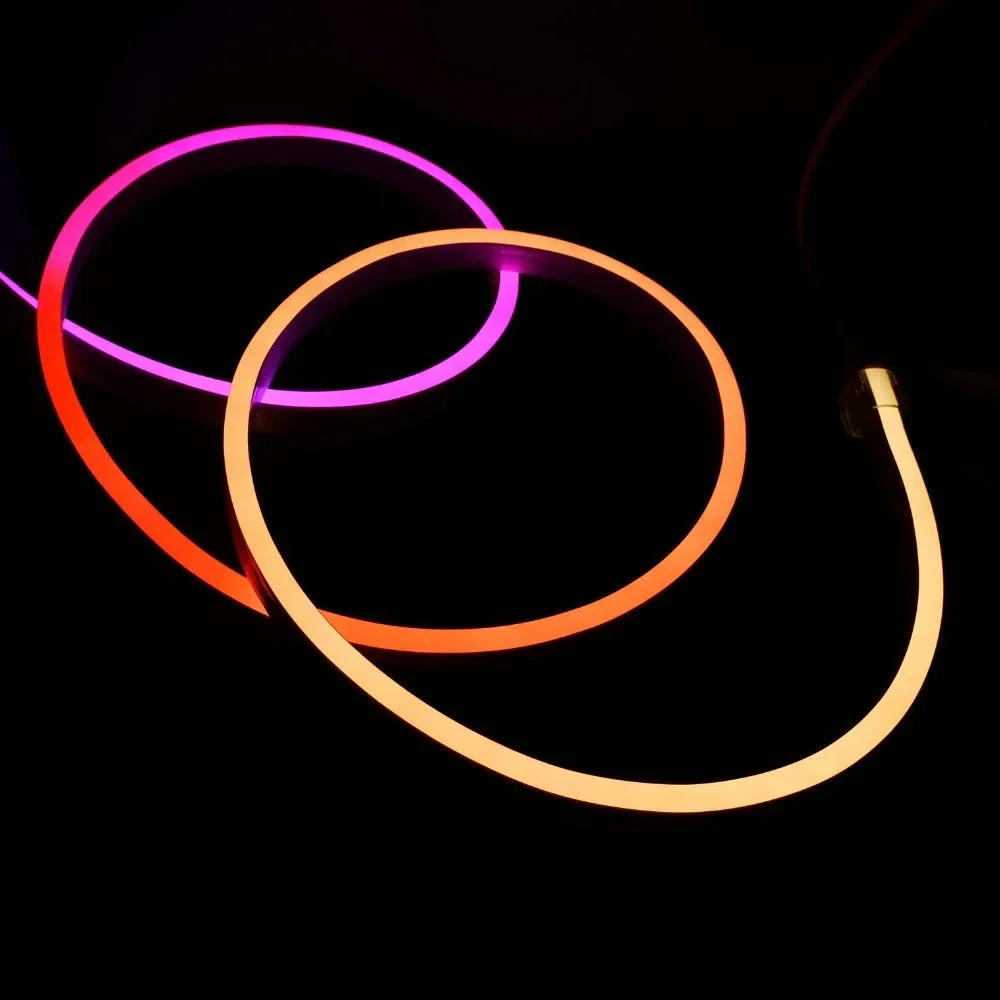

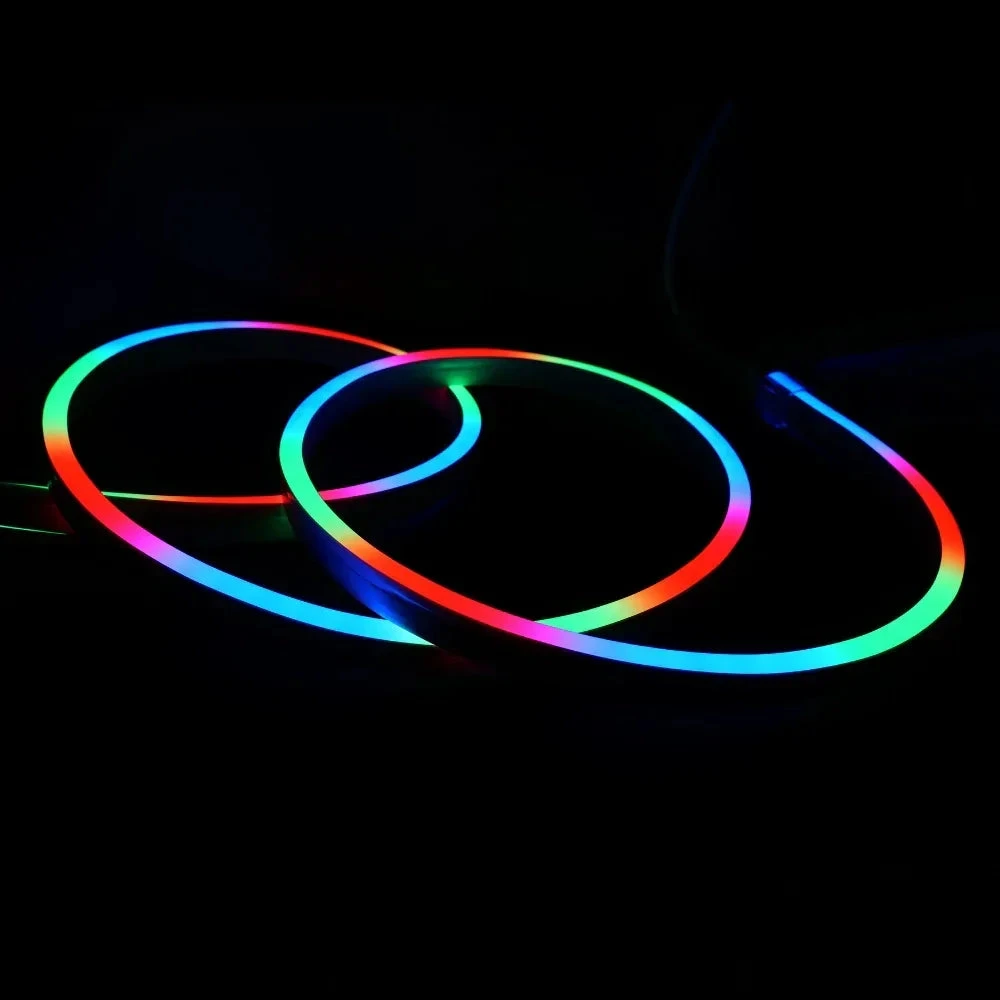

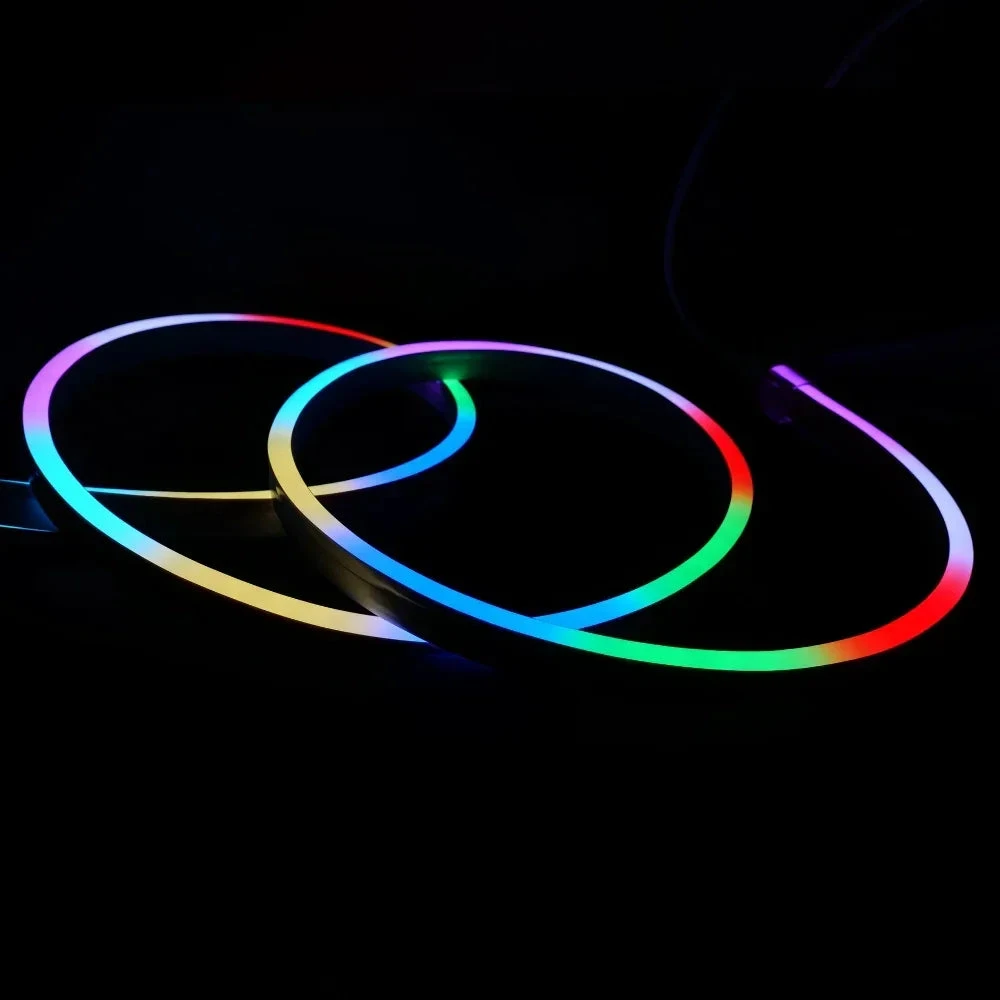

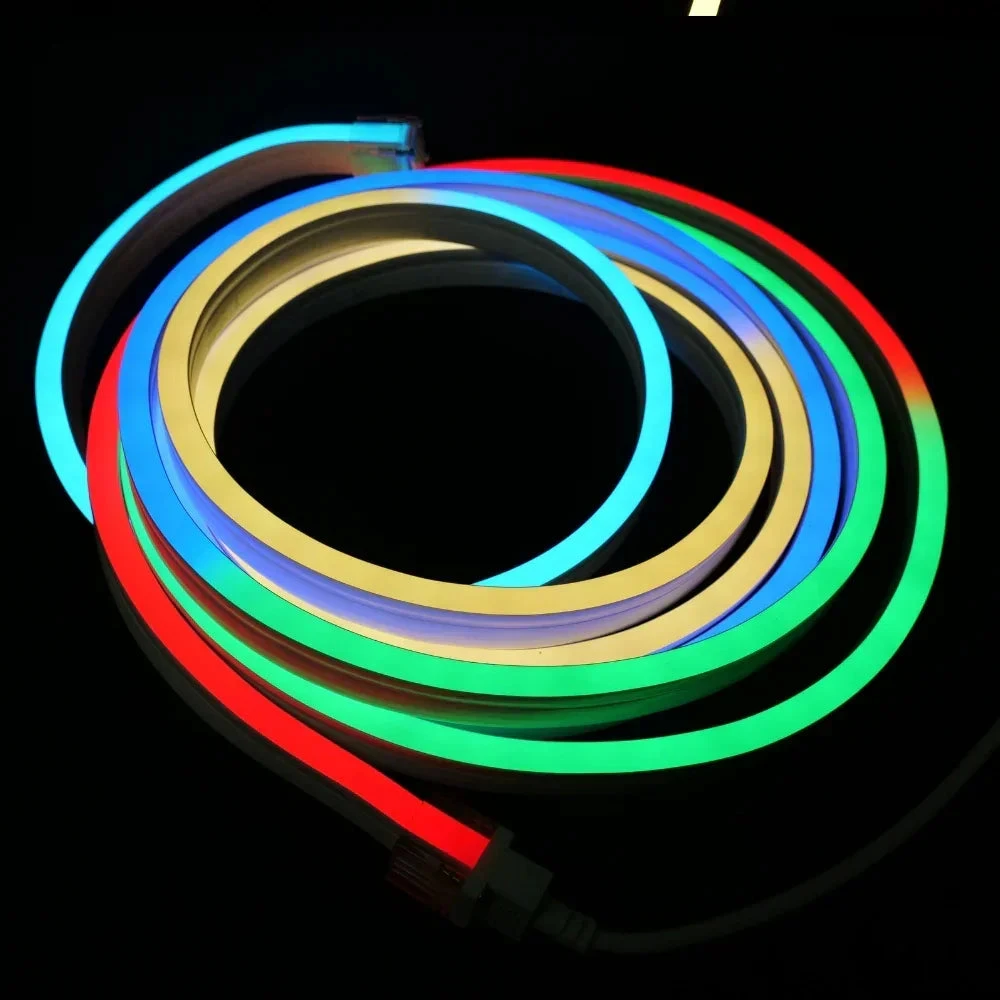

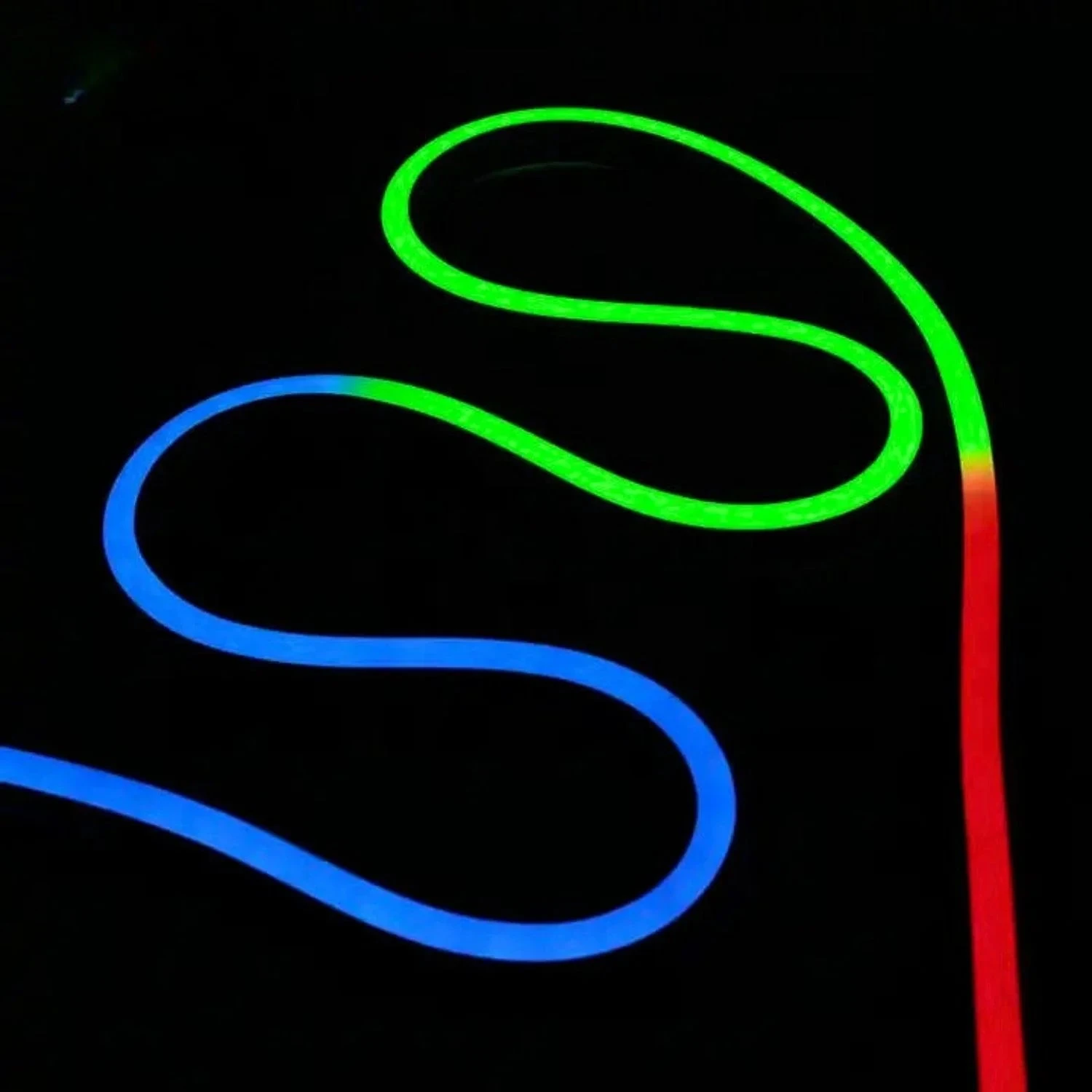

Introducing our Digitally Addressable Pixel Colour Chasing Horizontal Bending Neon Flexible Lighting, measuring 10mm x 20mm and utilizing the WS2811 Protocol. This professional-grade RGB Neon Flex comes with a 3-year warranty for outdoor use and a 5-year warranty for indoor use, ensuring long-lasting reliability. The strip is cuttable every 12.5cm, offering versatility for different project needs.

The neon flex comes with a 3-metre extension cable and has 10 pixels per metre, allowing for precise lighting control and effects.

Our professional-grade neon flex is built and tested to the highest standards, ensuring UKCA, CE & RoHS compliance and meeting rigorous mechanical and photometric quality benchmarks.

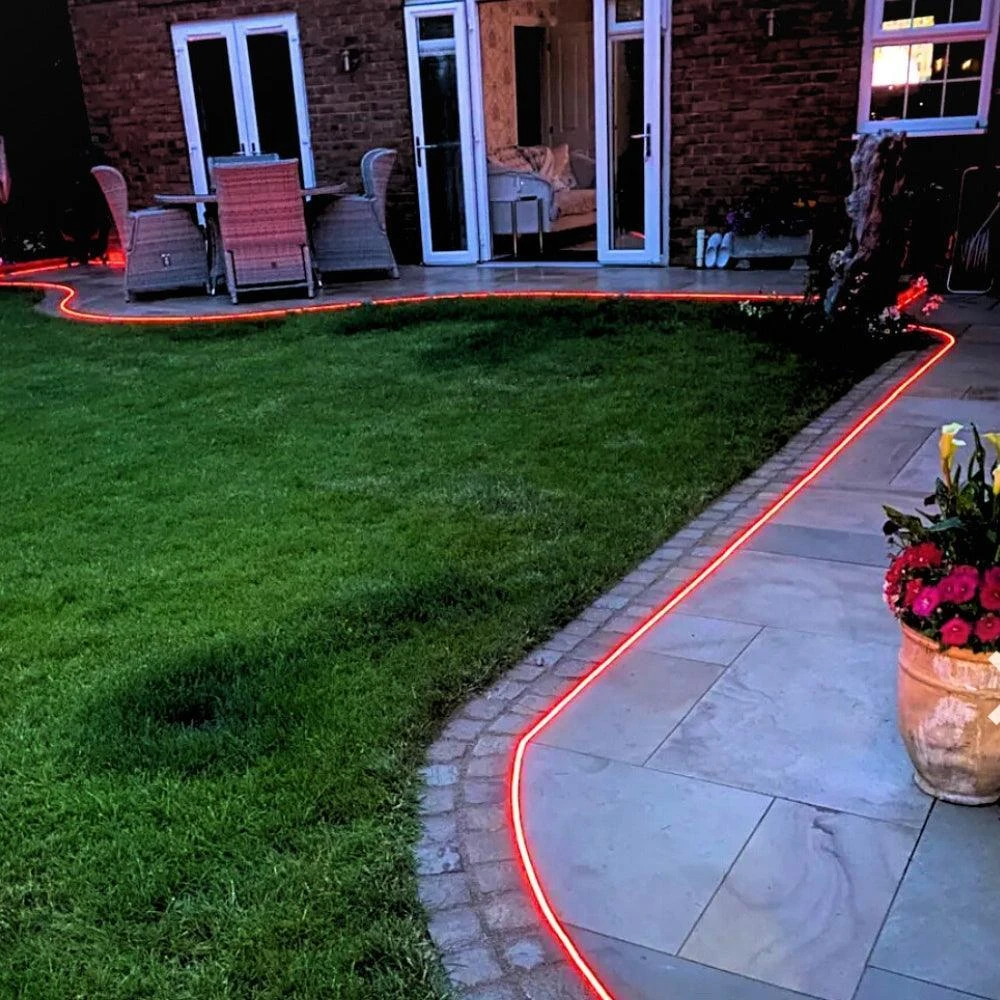

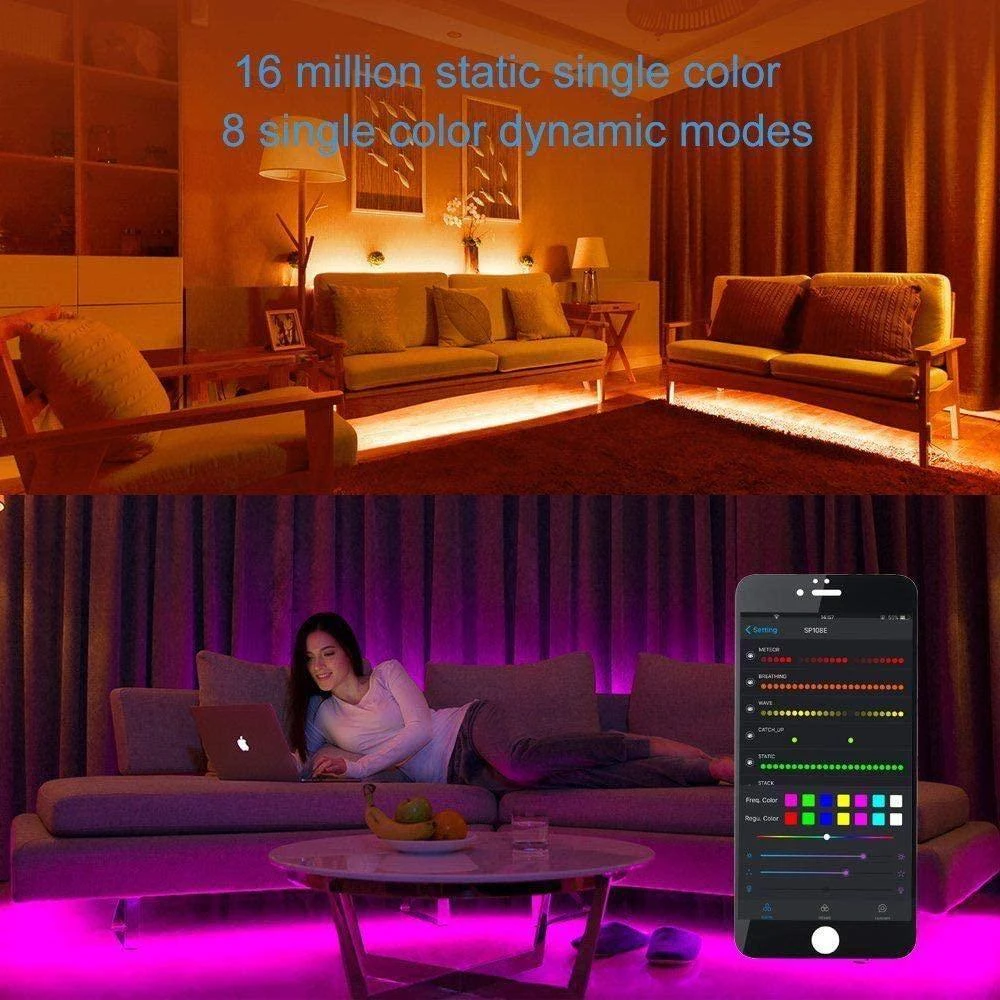

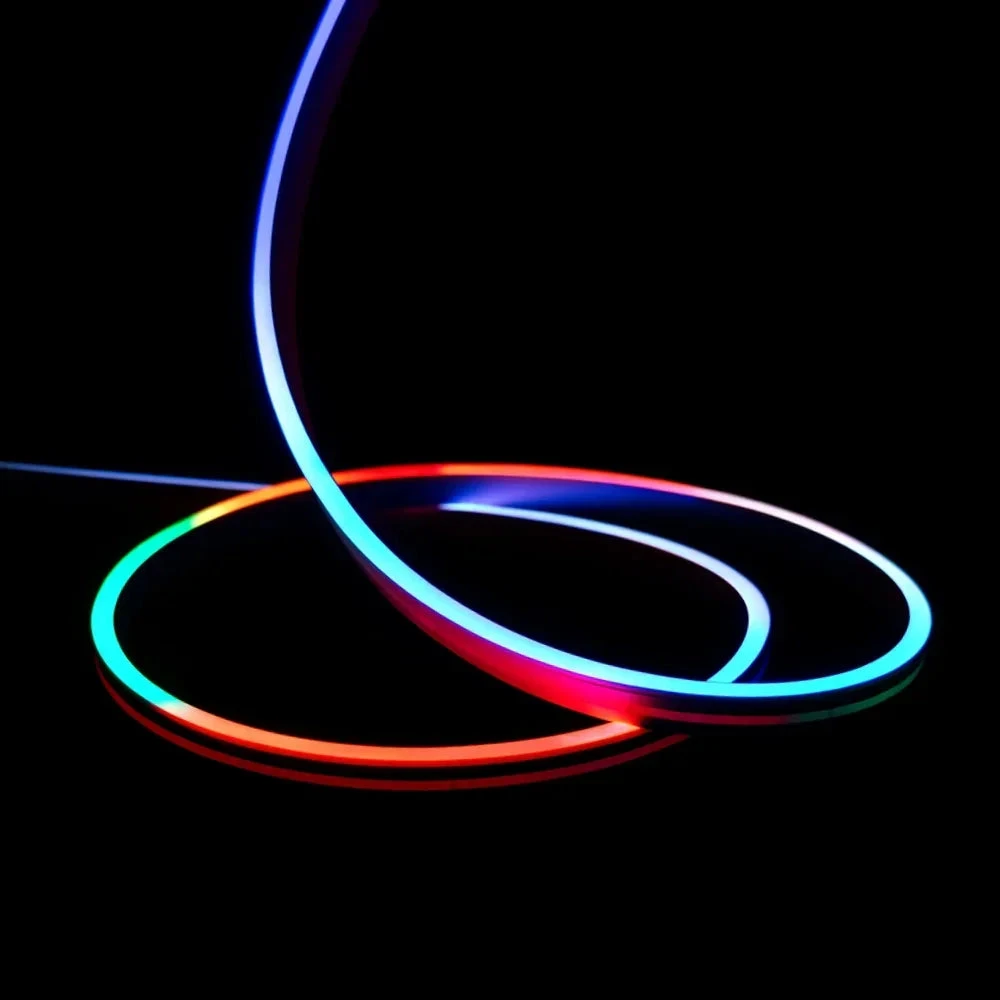

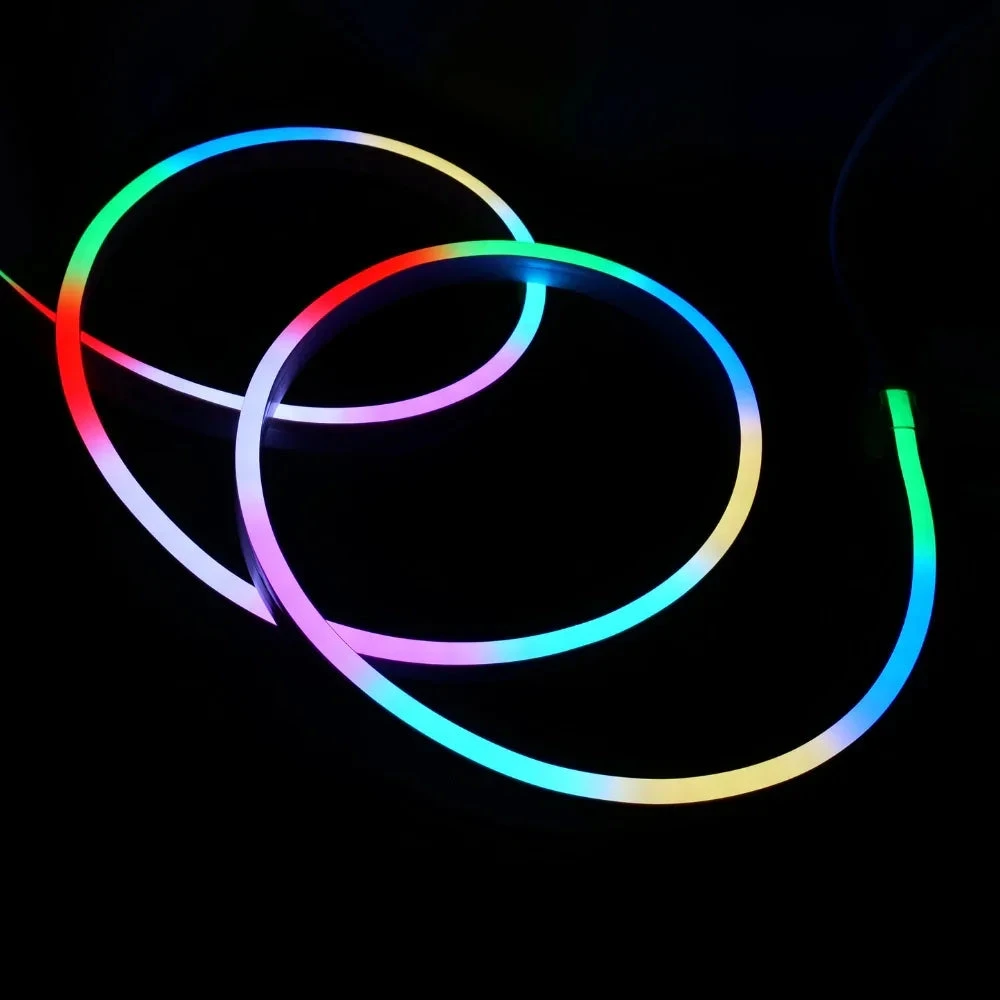

With numerous colour-changing patterns and adjustable speeds, this Digital Pixel RGB Neon Flex is perfect for decorating homes, gardens, offices, and shops. It offers a variety of effects, including flashing, fading, and chasing in red, blue, green, and more. You can create stunning dream color lighting effects to suit any environment.

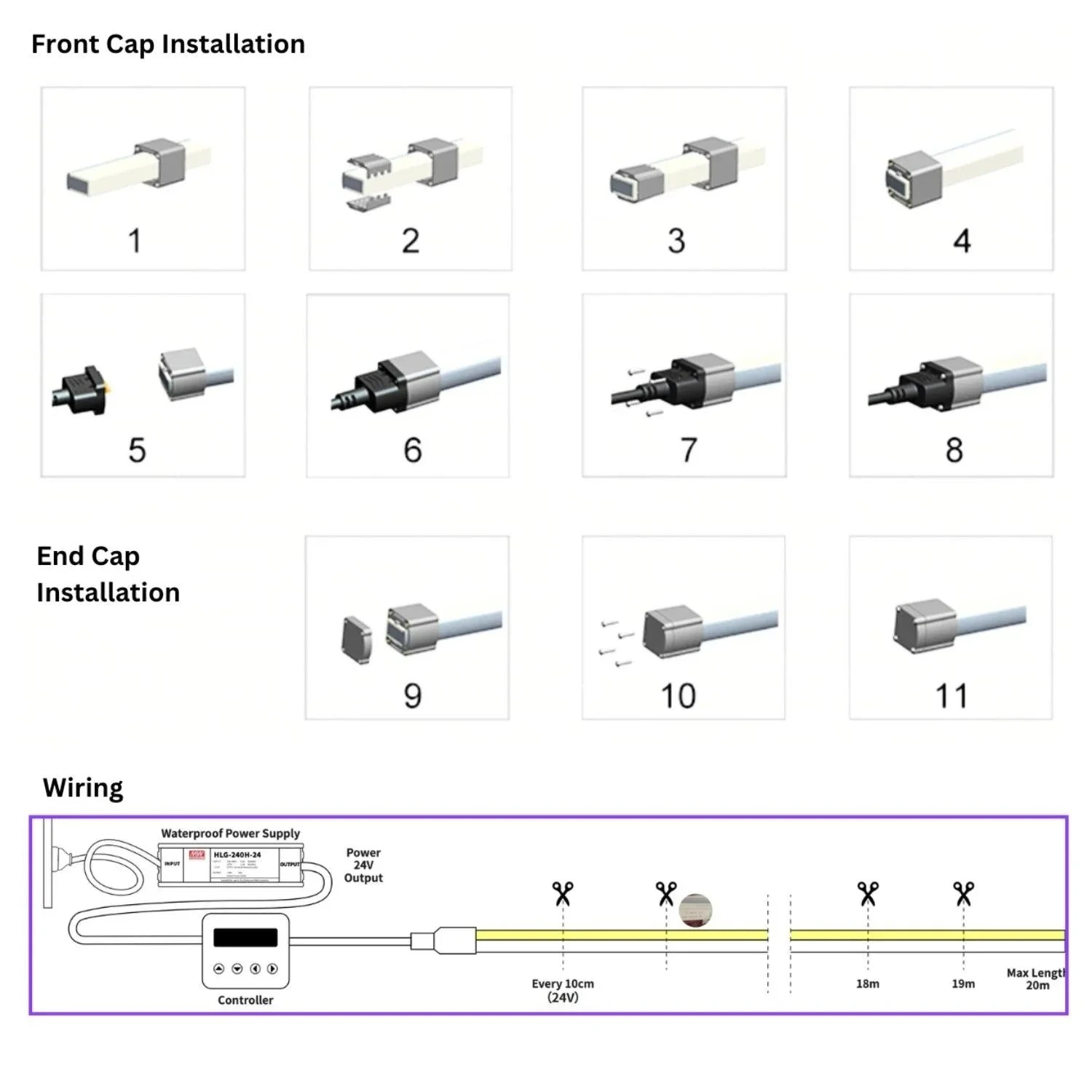

For installations up to 20 metres, the neon flex can be powered from one end.

If your installation exceeds 20 metres, it’s important to power the neon flex from both ends to prevent voltage drop. In this case, you will need an additional End Cap with wire to connect and power both ends of the neon flex.

This product offers professional-grade lighting effects with ease of use for both residential and commercial applications.

Specification:

• Working Voltage: DC 24V
• Light Colour: Digital Pixel RGB
• LEDs: 5050 WS281I
• Length: 20m (one-sided)
• Cuttable: Every 12.5cm
• Strip Backing: White
• IP Rating: IP68 Waterproof
• Working Temperature: -20 – 60 degree

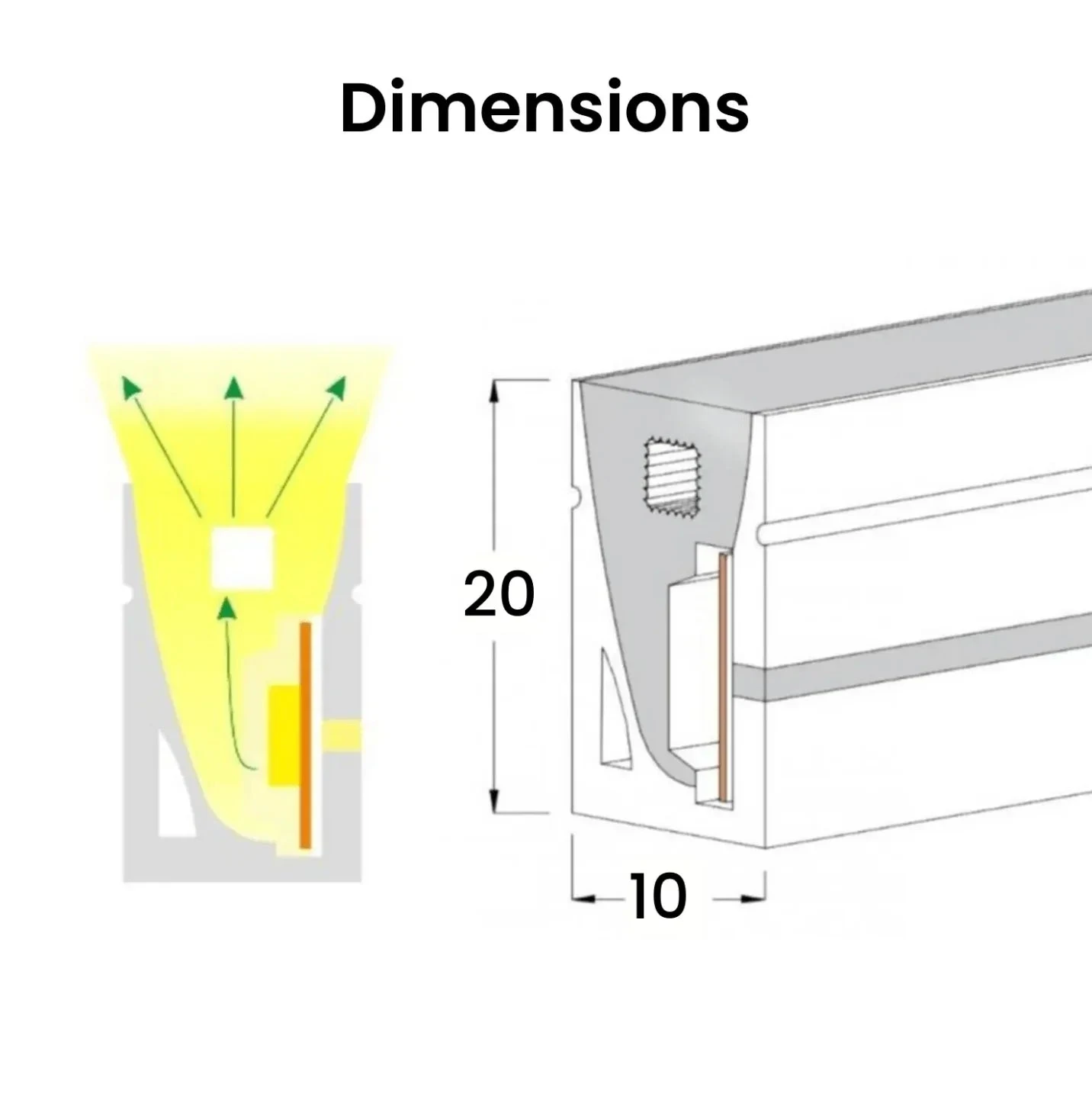

• Dimension: 10 x 20mm
• Power: 14W/Meter
• Pixels: 10 Pixels Per Metre
• Bending: Horizontal

Package Contents:

LED Neon Flex

Power Supply Needed: DC 24V Power Supply

Upto 5 Metre Length : DC 24V 100W
Upto 10 Metre Length: DC 24V 200W
Upto 15 Metre Length: DC 24V 300W
Upto 20 Metre Length: DC 24V 350W

The led neon flex is cut from a 50 metre roll so if you order more than 1 metre you will receive the lights in one continuous length.
