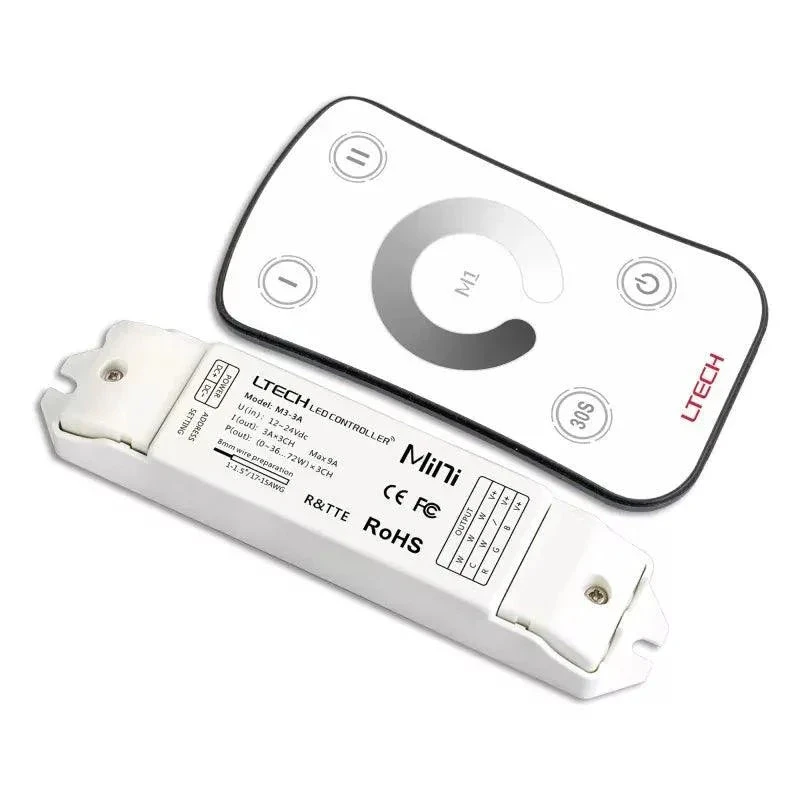

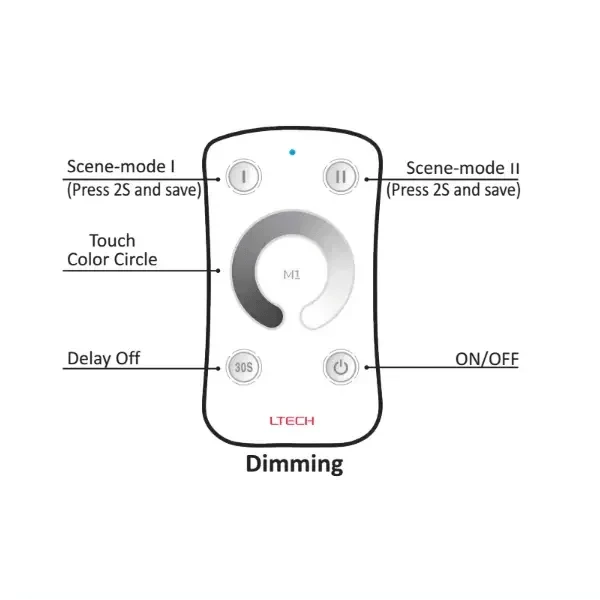

- M1 RF remote, easy for dimming monochrome LED lights in one touch
- Outstanding 4096/road greyscale with gentler lights and richer dynamic changing modes (most in the market is only 256)
- The versatile receiver can be paired and worked with up to 10 same or different Remotes ( for example M1, M2, M3, M5, M6, or M7)
- Automatic sleep mode (the remote automatically enter standby mode when untouched in 30 seconds)
- The remote has been paired to the Receiver in the package, easy to use
DATA SHEET:
| General | Product Type | Constant Voltage Driver |
| Â | Length (mm) | 104 |
| Â | Width (mm) | 58 |
| Â | Height (mm) | 9 |
| Â | Housing Color | White |
| Â | Housing Material | Plastic |
| Â | Mounting | Surface mounted |
| Â | Weight (g) | 42 |
| Â | Wire Strip Length | 5mm |
| Â | Wire Type | 2.5mm2 |
| Electronics | Input Domain | DC |
| Â | Input Voltage | 12 ~ 24V DC |
| Â | Output Voltage | 12 ~ 24 V DC |
| Â | Output Current (mA) max/output | 3000 |
| Â | Output Current Max. (A) | 9 |
| Â | Output Power (W) | 108W @ 12V, 216W @ 24V |
| Â | Power Supply | N/A |
| Â | LED Outputs | 3 |
| Lighting | Color Range | Single Color |
| Control | Output Signal | RF, PWM-CV |
| Â | Control | Manual |
| Â | Remote Distance | 40m |
| Â | Zones | 1 |
| Â | Number of Channels | 1 |
| Â | Functions | programmable |
| Protection | Reverse Polarity | Yes |
| Â | LED Output Short | Yes |
| Â | Overload | Yes |
| Â | Restart after Protection | Yes |
| Environmental | Operating Temperature | -20 ~ +55 °C |
| Â | Ingress Protection | IP20 |
| Â | Environment | Indoor |
| Other | Country of Origin | People’s Republic of China |
| Approvals | CE | √ |
| Â | FCC | FCC Part 15:2009 |
| Warranty | Warranty | 5 Year |

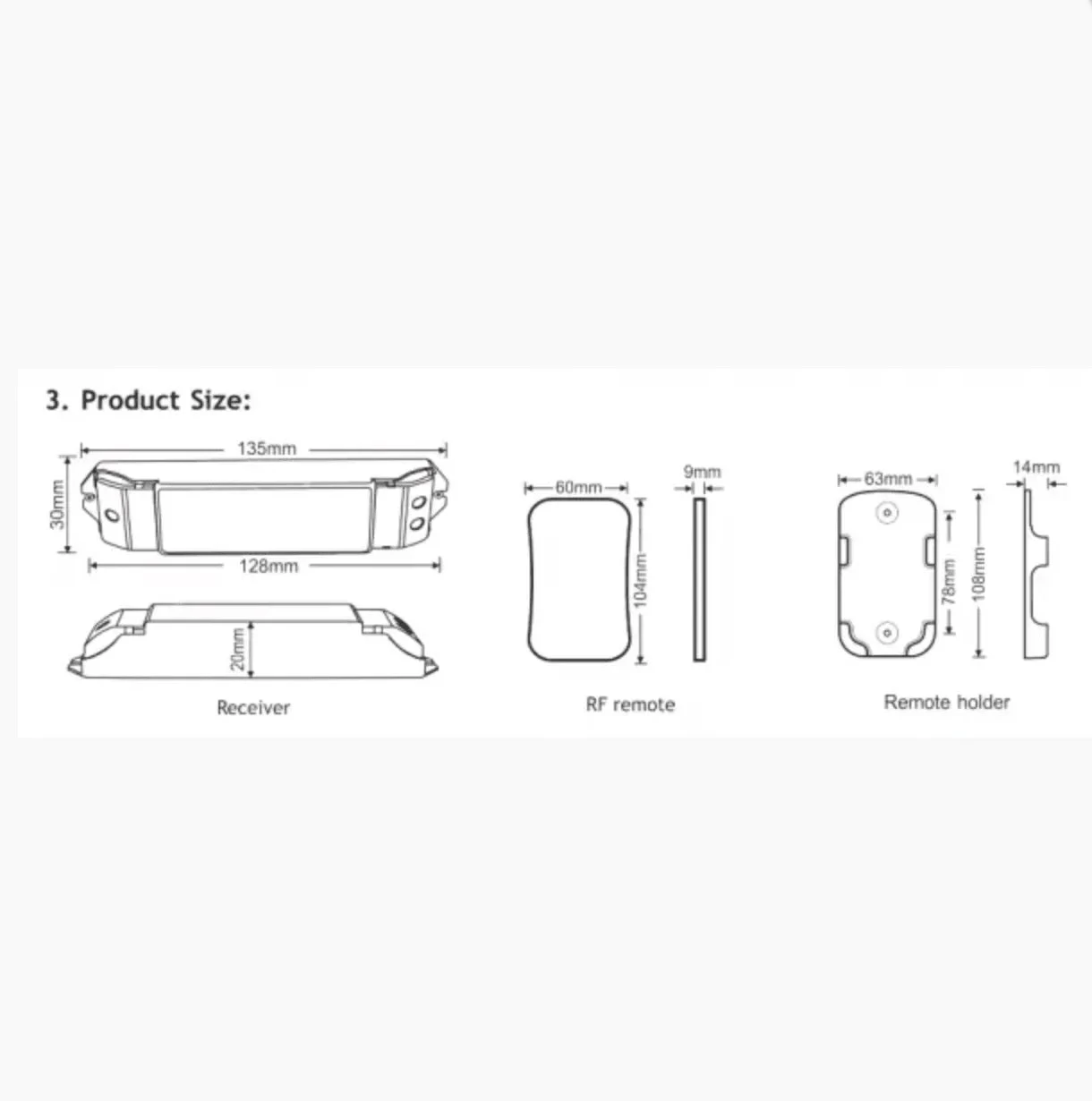

| Weight & Dimensions | W x H x D (cm) | 6.00 x 1.00 x 10.40 |
| Â | Weight (kg) | 0.04 |
