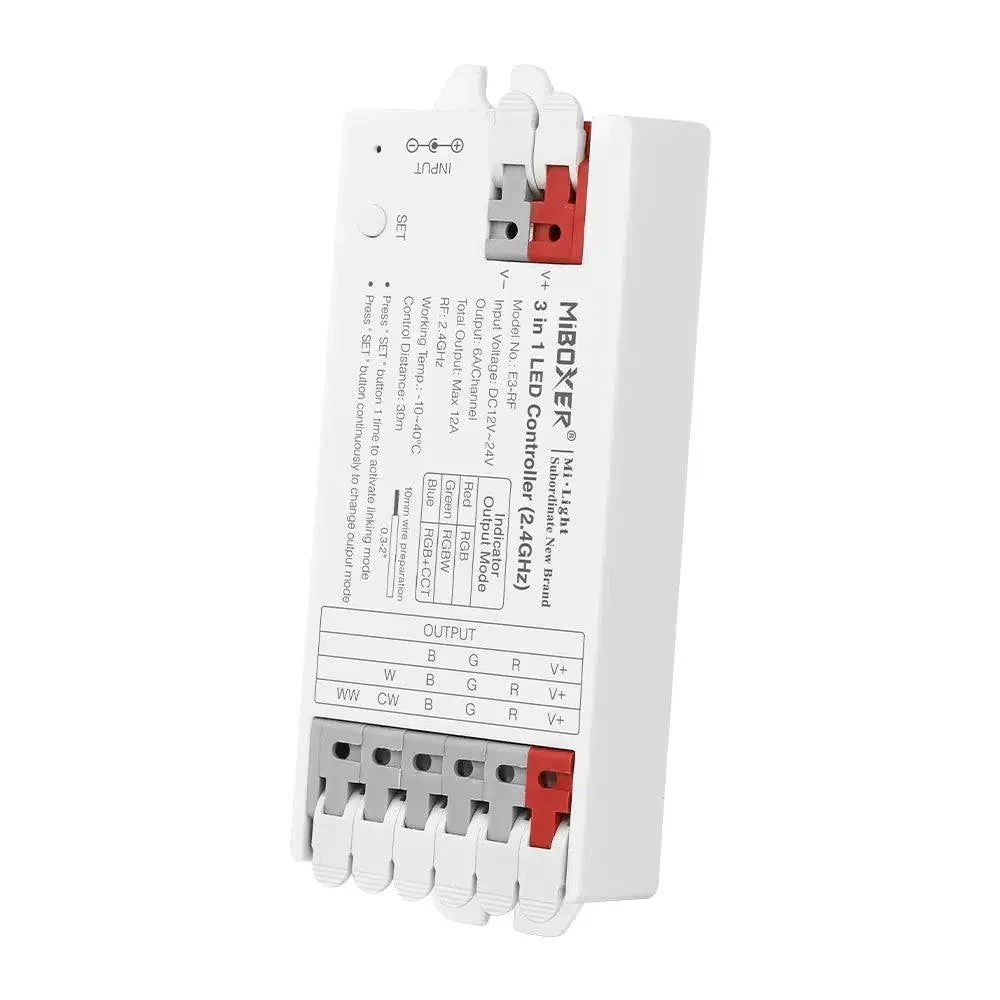

Miboxer E3-RF 2 In 1 LED RF Controller 12V-24V RGB/RGBW & RGB+CCT

User Manual:

Tool-free instant wiring
• Tool-free instant wiring
• Compatible with Mi-Light / MiBoxer 2.4GHz series remote
• Control Distance: 30m
• Brightness and color temperature adjustable
• Switching 3 output mode via one summary (RGB / RGBW / RGB+CCT)

Support DMX512 Controllable
Only for RGB+CCT output mode, Need DMX512 LED transmitter

One lighting fixtures can transmit the signals from the remote control to another lighting fixtures within 30m, as long as there is a lighting fixtures within 30m, the remote control distance can be limitless. Different lighting fixtures can work synchronously when they are started at different times, controlled by the same remote, under same dynamic mode and within 30m distance.

Specification:
Product – 3 in 1 LED Controller (2.4GHz)
Model – E3-RF
Colour – RGB, RGBW, RGBW+CCT
Input Voltage – DC 12V – 24V
Output – 6A/Channel
Total Output – 12A Max
Communication Protocol – RF
Control Distance –  30m
IP Rating – IP20
Working Temperature – -10~40°C
Output Connection – Common Anode
Size – 100.6mm x 40mm x 17.6mm
