User Manual:
Tool-free instant wiring
• Adopt zigbee 3.0 standard protocol
• Compatible with Zigbee 3.0 series product
• App control / Third party voice control
• Support online upgrade
• Up to 128 sub-devices can be added
App control / Third party voice control / Support online upgrade

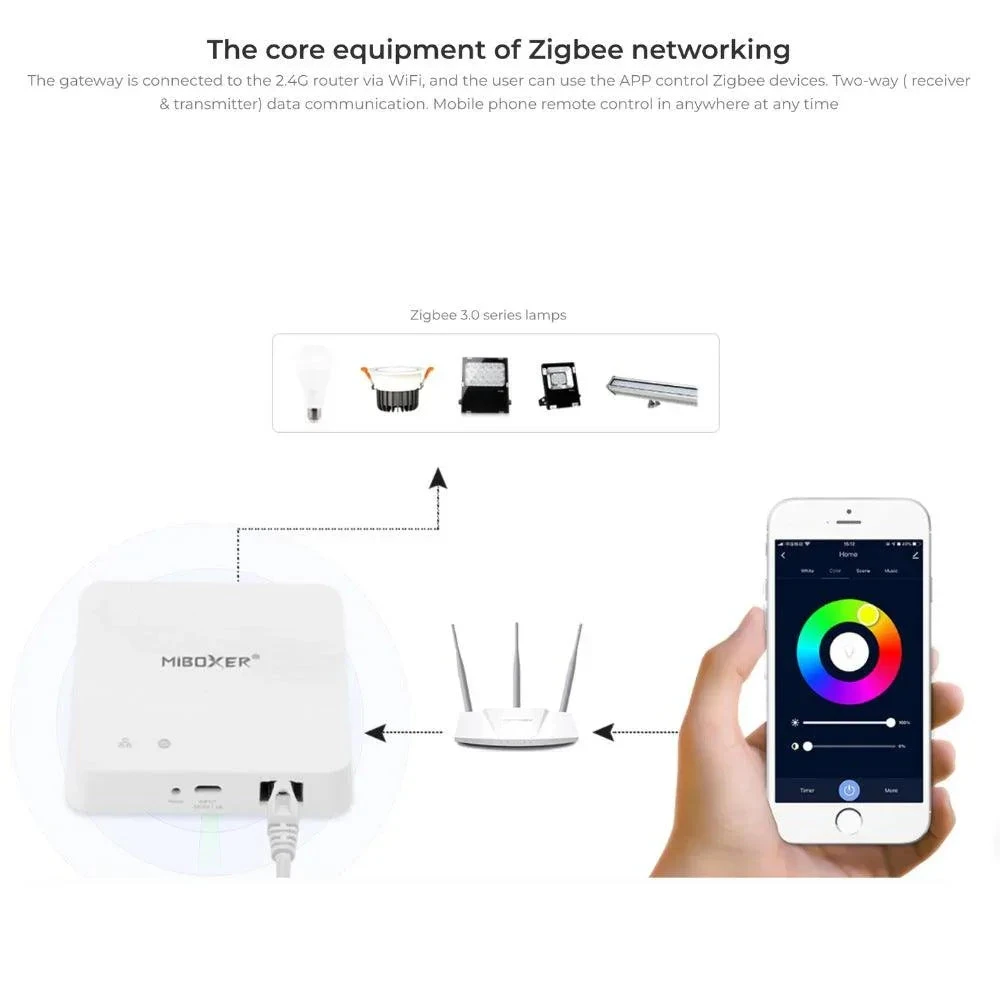

The gateway is connected to the 2.4G router via WiFi, and the user can use the APP control Zigbee devices. Two-way ( receiver & transmitter) data communication. Mobile phone remote control in anywhere at any time
For voice control, follow the instructions on how to pair your Smart Speaker to your device. The ZIGBEE hub works with Amazon Alexa and Google Assistant home automation systems.
Most third-party ZIGBEE devices can be controlled from the app, just simply add them to the virtual application.
This home assistant ZIGBEE gateway allows full control over connected devices, both locally and from anywhere in the world. Setting up routines such as alarms and timers through the wireless network is effortless.
Specification:

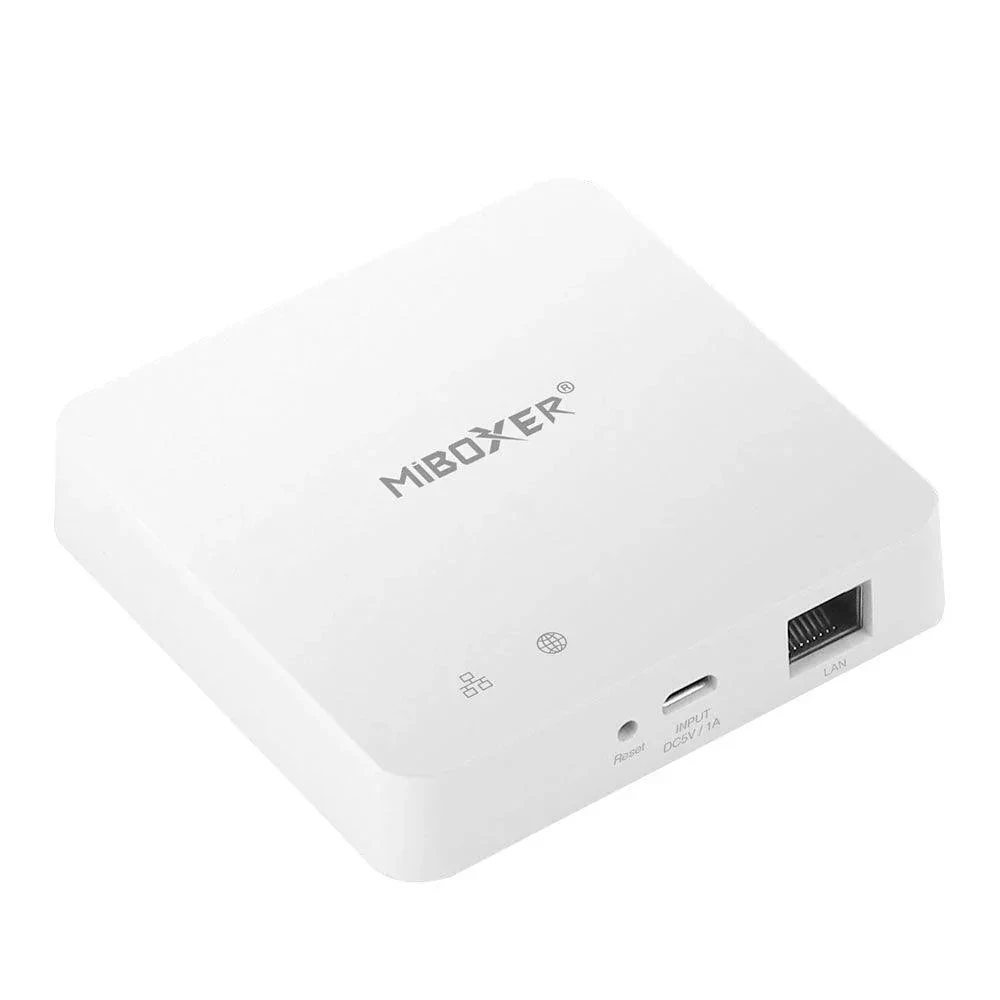

Product – Zigbee 3.0 Wired Gateway
Model – ZB-Box2
Transmitting Power – ZigBee 10dBm
Input – DC5V / 1A (Micro USB)
Max Controllable Lights – 128 Pcs
Communication Protocol – Zigbee 3.0
Control Distance – 100m (open area)
IP Rating – IP20
Working Temperature – -10~40°C
Wireless Technology – Zigbee 802.15.4
Zigbee Wireless Frequency – 2.400-2.480GHz

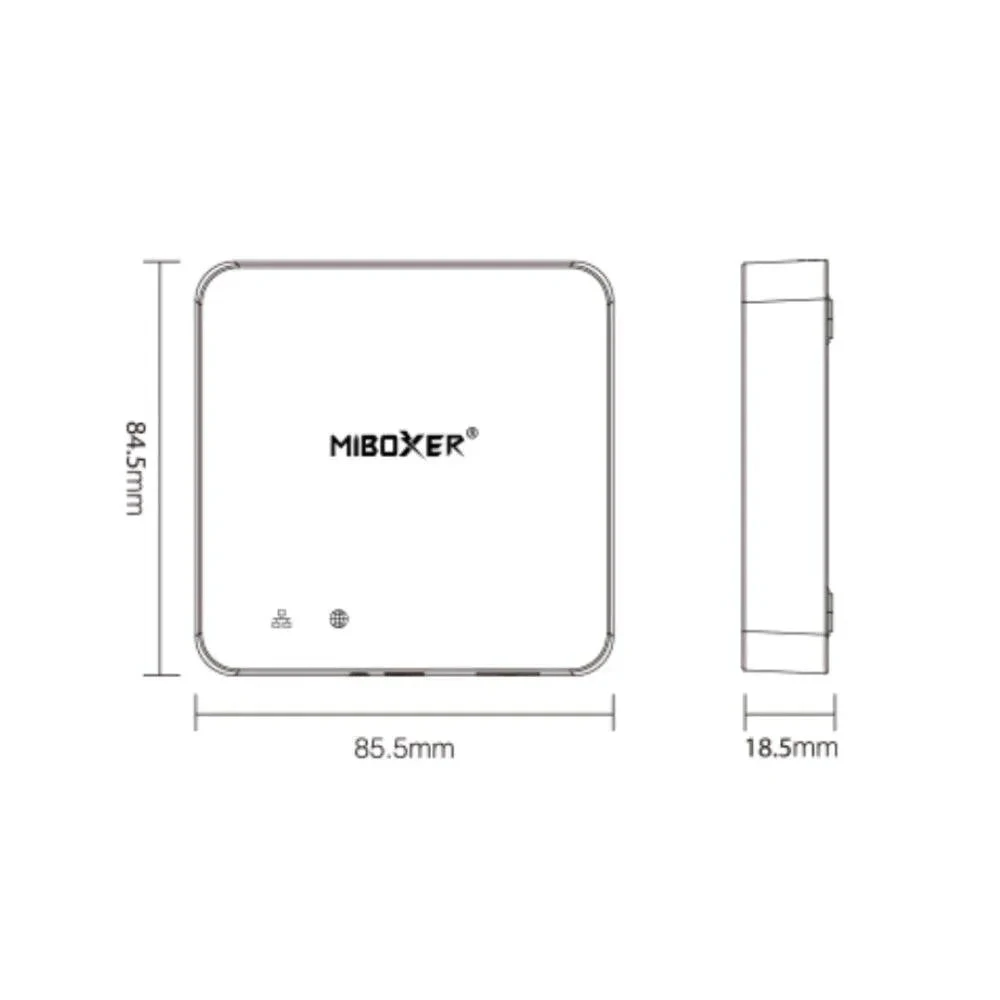

Size – 84.5mm x 85.5mm x 18.5mm
