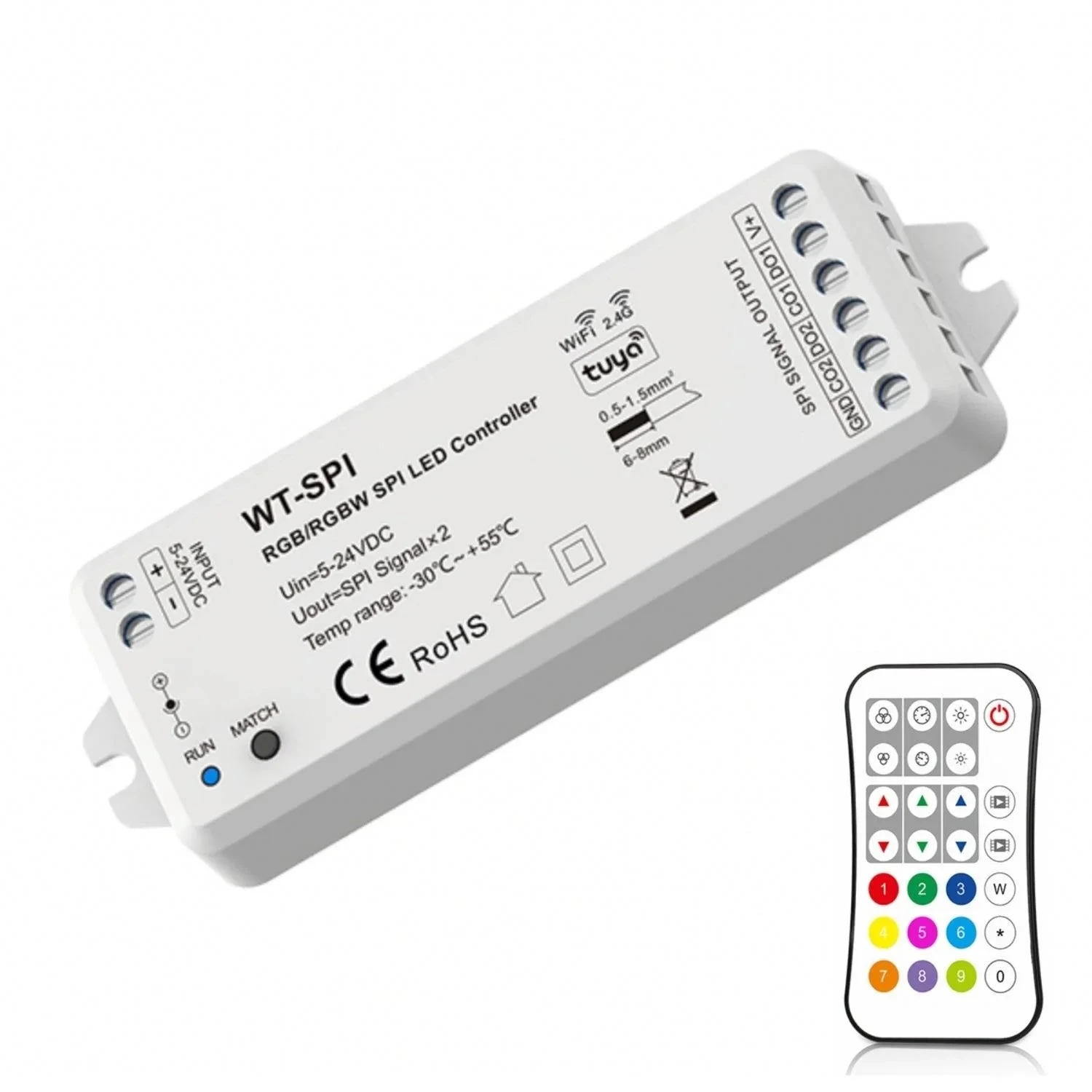

Skydance Digital Pixel RGB Controller 5-24VDC WiFi & RF RGB/RGBW SPI LED Controller WT-SPI (Tuya App) WS2811 With Remote
Original price was: $69.75.$48.83Current price is: $48.83.
- Buy Quality, Live Better
- Safe Payments, the Smart Choice
- The quality you expect, the service you deserve.
- 100% Quality Promise
Download Manual
Tuya APP cloud control/Compatible with 45 kinds IC/Customized dynamic scenario mode/Multiple music rhythms/Wireless remote control
Features

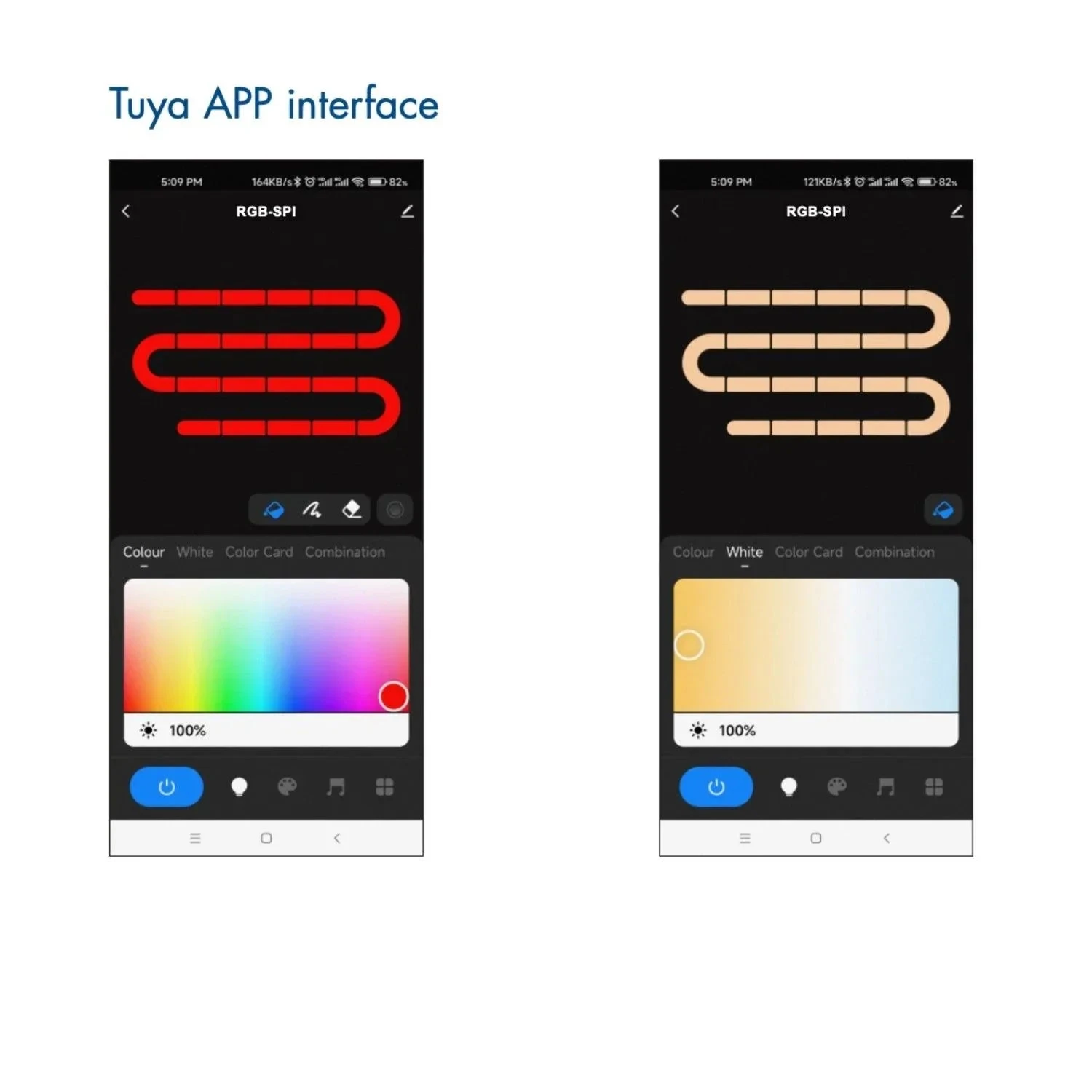

- ● Multi-pixel RGB/RGBW LED strip controller with SPI signal output, Tuya APP cloud control.
- ● Compatible with 45 kinds of RGB or RGBW LED strips, chip type and R/G/B order canbe set via RF remote control.
Compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, SK6813, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815, TM1829, TLS3001, TLS3002, GW6205, MBI6120, TM1814B(RGBW), SK6812(RGBW), WS2813(RGBW), WS2814(RGBW), UCS8904B(RGBW), LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822, TM1914A, GS8206, GS8208, UCS2904, SM16804, SM16825, SM16714(RGBW), UCS2603, UCS5603. - ● Painted segment color mixing: full colour, color pencil segment painting, eraser segment light off.

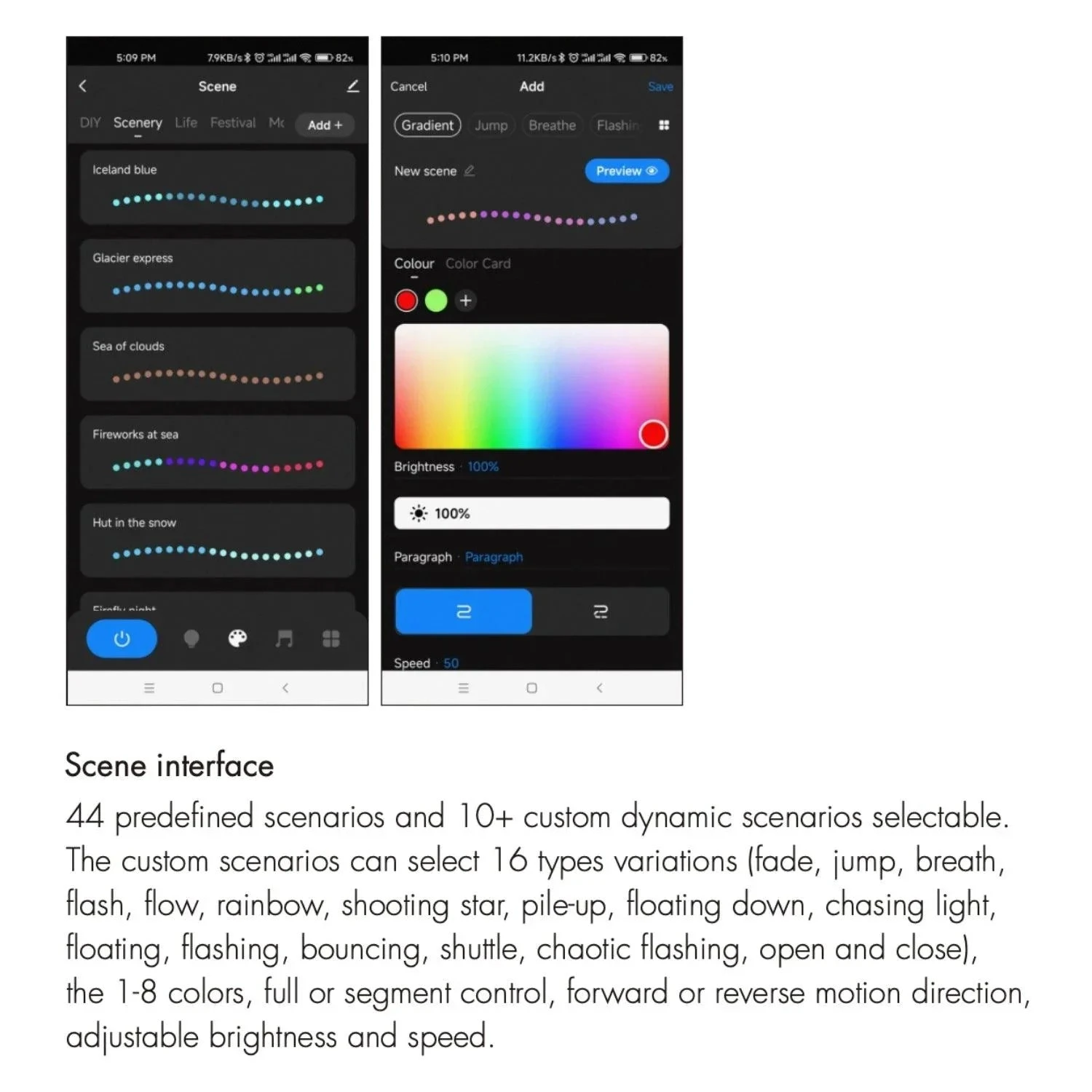

- ● Rich dynamic effects: 44 default and 10+ custom dynamic scenarios, 16 variations.

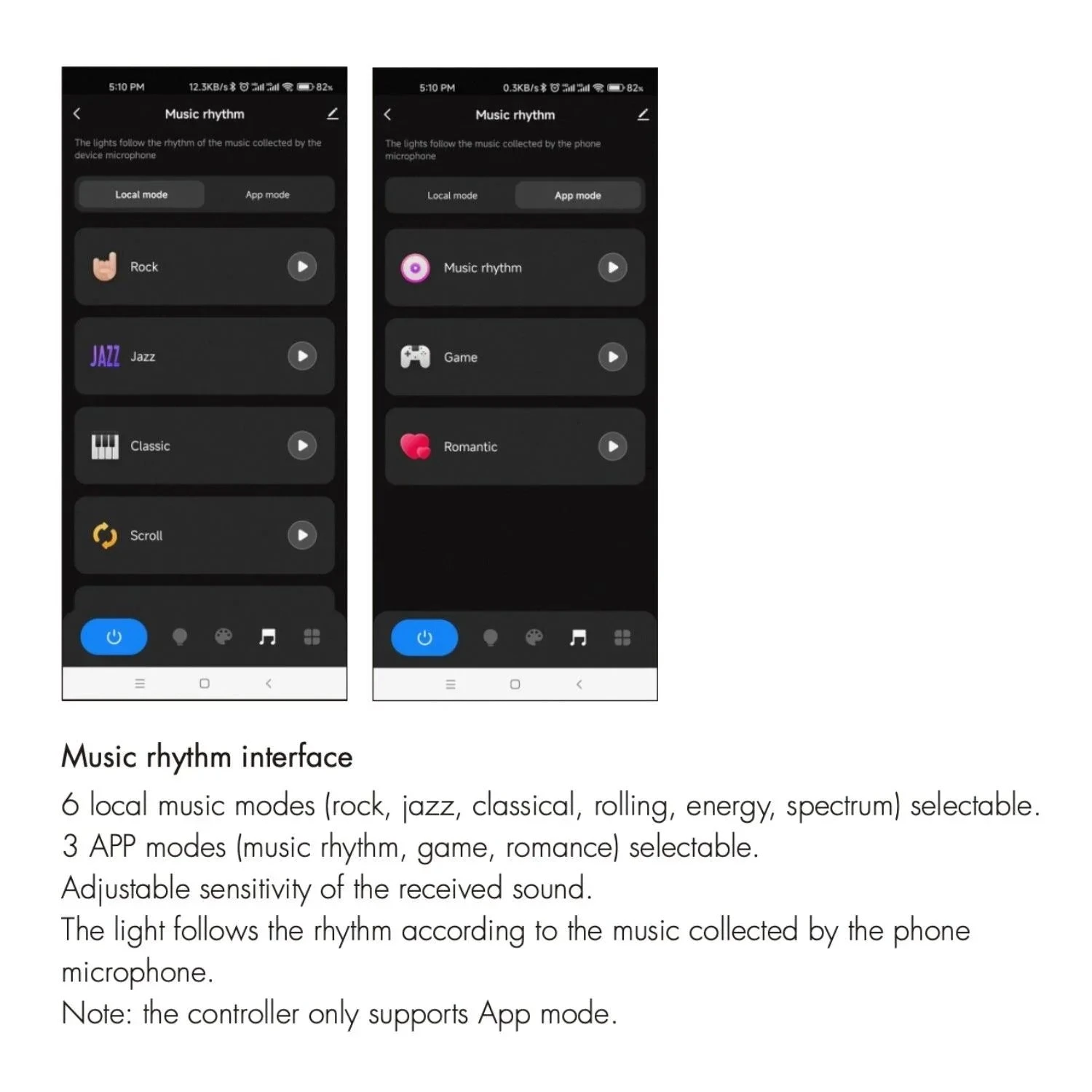

- ● Multiple music rhythms: 6 local music rhythms, 3 APP music rhythms.
- ● Match with RF 2.4G RGB remote control.
Technical Parameters
Input and Output
Input voltage – 5-24VDC
Input signal – Tuya APP + RF 2.4GHz
Output signal – SPI(TTL) x 2
Scenario Mode – 44 default and 10+ customizations
Pixel Dots – MAX.1000
Operation temperature – Ta: -30OC ~ +55OC
Case temperature (Max.) – T c:+65 C
IP rating – IP20
Size – L120 x W43 x H35mm

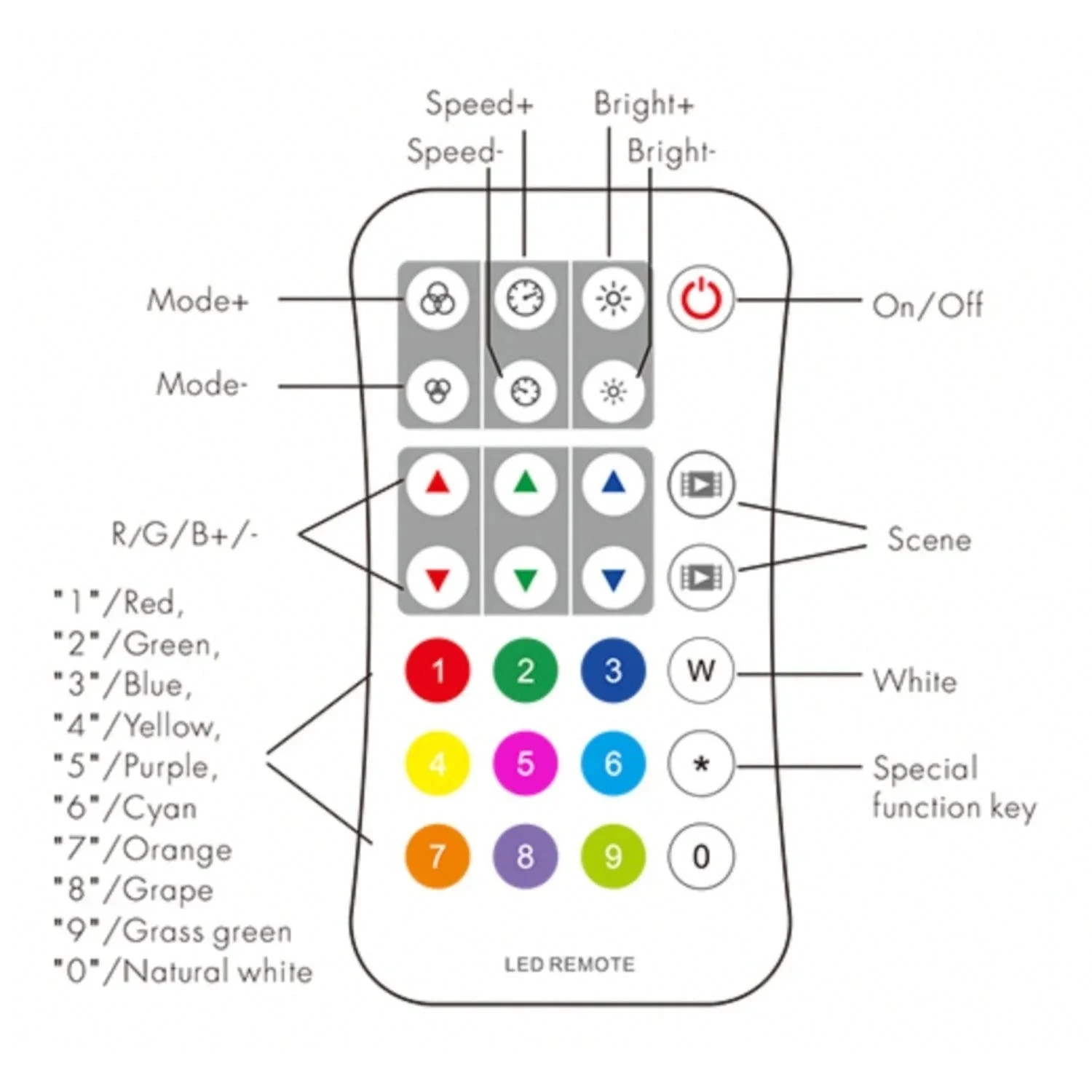

Match R9 remote control
Match: Short press on the match key, and immediately press on/off key of the remote. The LED indicator fast flash a few times means match is successful. Delete: Press and hold match key for 10s to delete all match, The LED indicator fast flash a few times means all matched remotes were deleted.
Set the length, chip type and RGB order of the SPI LED strip using R9 remote control
● Set the LED strip length[number of pixels(10~1000)]: * + 3 digits + *
Example:
*032*, set the number of pixels 32. *600*, set the number of pixels 600. *1000*, set the number of pixels 1000.
●Set the LED strip chip type: * +2 digits + *
*11*:TM1803
*12*:TM1809, TM1804, TM1812, UCS1903, UCS1909, UCS1912, SK6813,
UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815 *13*:TM1829
*14*:TLS3001, TLS3002
*15*:GW6205
*16*:MBI6120
*17*:TM1814B(RGBW)
*18*:SK6812(RGBW), WS2813(RGBW), WS2814(RGBW) *19*:UCS8904B(RGBW)
*21*:LPD6803, LPD1101, D705, UCS6909, UCS6912 *22*:LPD8803, LPD8806
*23*:WS2801, WS2803
*24*:P9813
*25*:SK9822 *31*:TM1914A *32*:GS8206,GS8208 *33*: UCS2904
*34*: SM16804
*35*: SM16825
*36*: SM16714(RGBW) *37*: UCS5603
*38*: UCS2603
● Set LED strip RGB order:* + 1 digit + *
*1*:RGB, *2*:RBG, *3*:GRB, *4*:GBR, *5*:BRG, *6*:BGR.
- Input and Output
- Input voltage – 5-24VDC
- Input signal – Tuya APP + RF 2.4GHz
- Output signal – SPI(TTL) x 2
- Scenario Mode – 44 default and 10+ customizations
- Pixel Dots – MAX.1000
- Operation temperature – Ta: -30OC ~ +55OC
- Case temperature (Max.) – T c:+65 C
- IP rating – IP20
- Size – L120 x W43 x H35mm
